HDD Bore Tracking Technology Used in Oklahoma

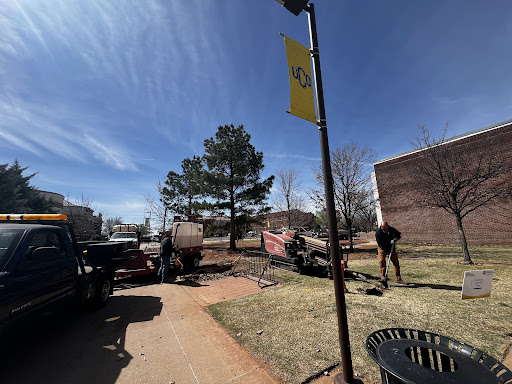

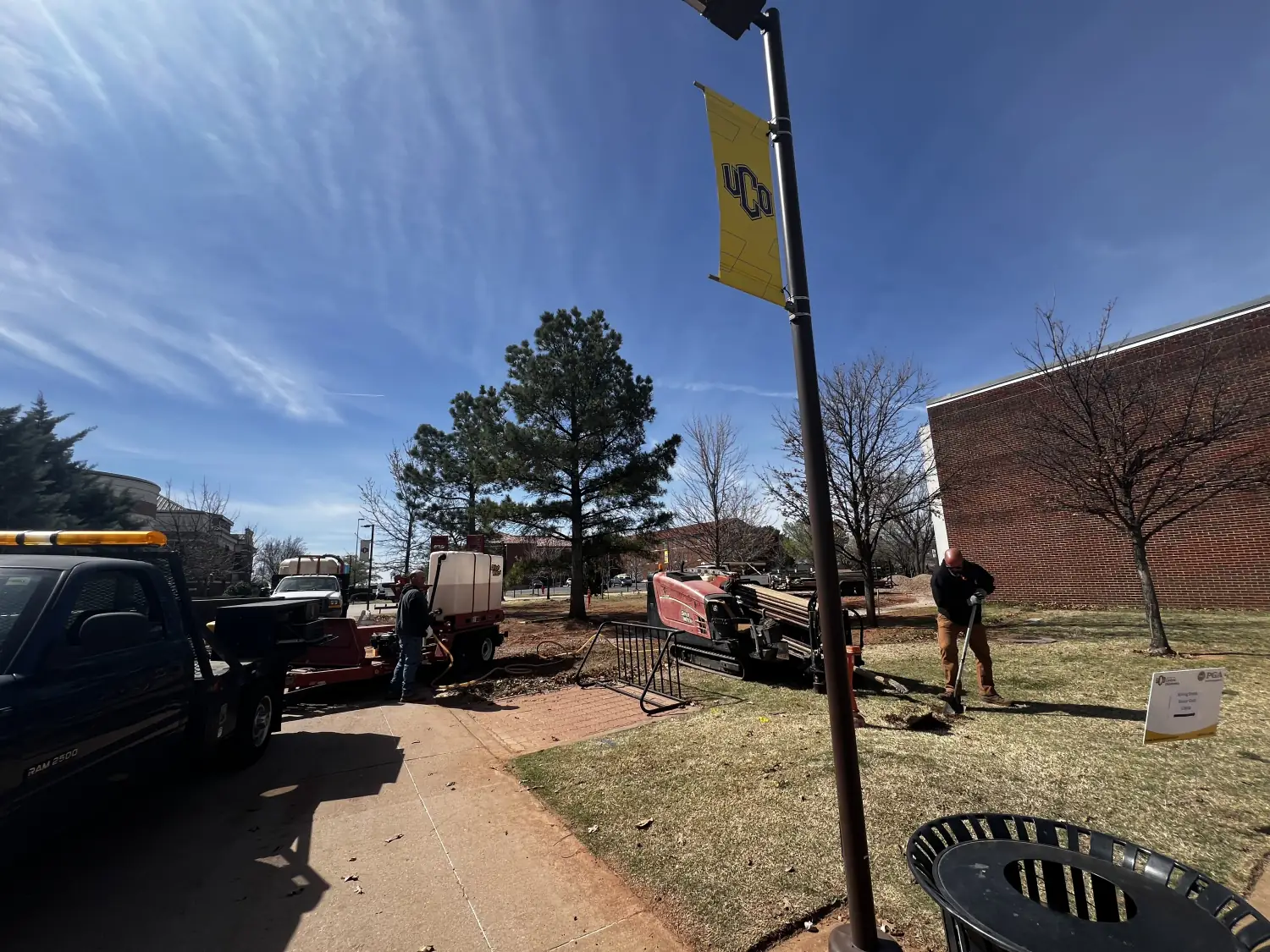

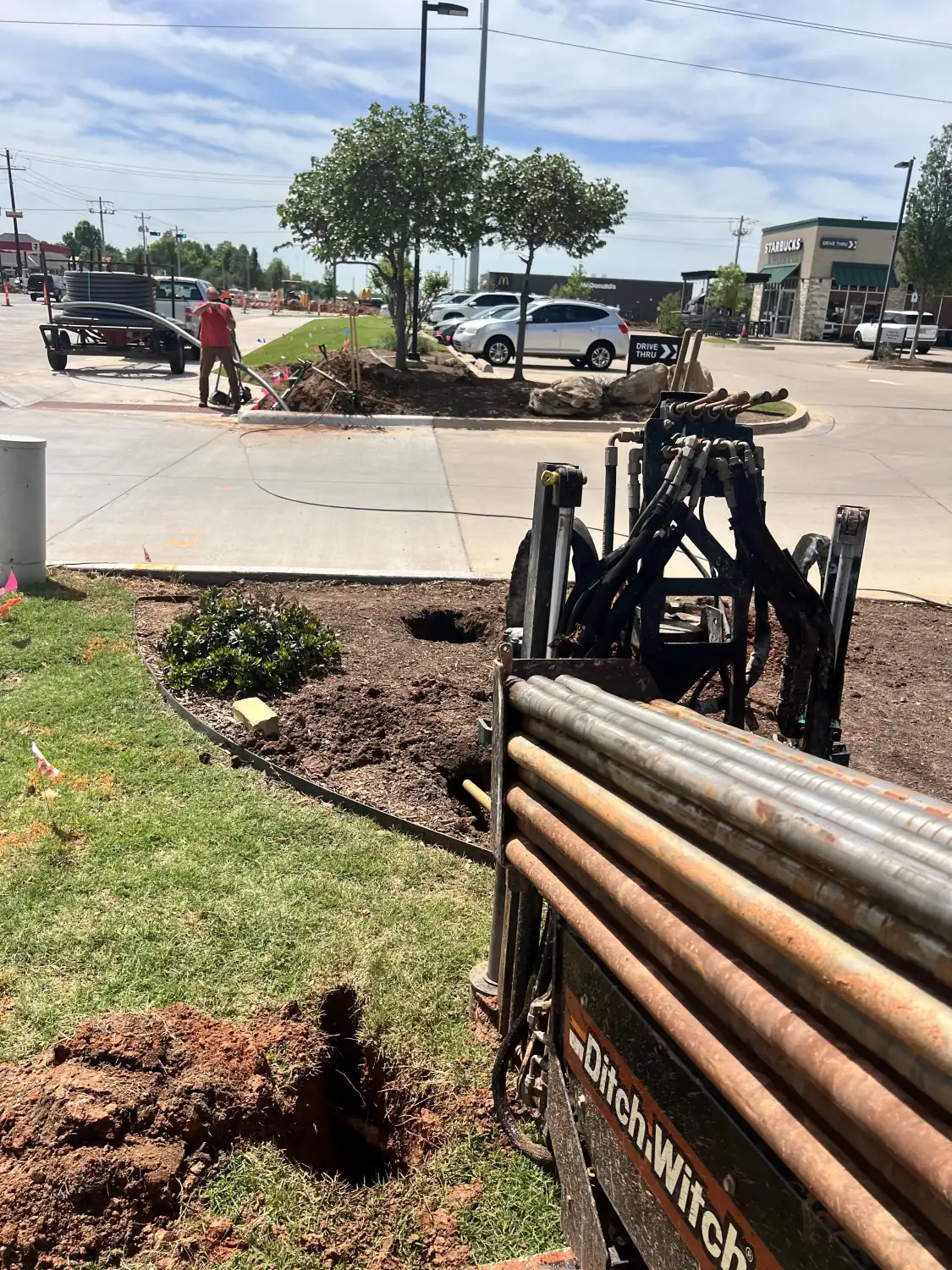

The growing demand for reliable HDD drilling rigs Oklahoma has driven Trinity Boring Solutions to continuously expand our fleet. Today we operate 10 plus Vermeer and Ditch Witch HDD rigs capable of handling jobs from 2 inch service lines all the way to 24 inch river crossings.

Our track record as a HDD drilling rigs Oklahoma provider spans thousands of projects across Oklahoma including municipal water main replacements, commercial fiber runs and residential utility installations. We bring the same level of precision to every job regardless of size.

Our track record as a HDD drilling rigs Oklahoma provider spans thousands of projects across Oklahoma including municipal water main replacements, commercial fiber runs and residential utility installations. We bring the same level of precision to every job regardless of size.

Our track record as a HDD drilling rigs Oklahoma provider spans thousands of projects across Oklahoma including municipal water main replacements, commercial fiber runs and residential utility installations. We bring the same level of precision to every job regardless of size.

Bore path tracking is the technology that allows an HDD operator to follow a planned bore path accurately underground. Without real time tracking data, an operator has no way to know whether the drill head is at the correct depth, is drifting laterally from the planned centerline, or is about to emerge at the wrong location. Precise tracking is what separates professional directional drilling from guesswork.

Walkover Sonde Locating: The standard tracking system for most residential and commercial Oklahoma bores. A sonde transmitter is installed in the housing directly behind the drill bit. As the bore advances, the sonde broadcasts a signal through the soil to the surface. A locator operator walks above the bore path and reads the sonde signal on a hand held display, which shows real time depth, lateral position, and drill head roll angle. This information is communicated to the drill operator at the rig, who steers the drill head to stay on the planned bore path. Walkover locating works effectively at depths up to approximately 20 feet depending on soil type and ground cover.

Wire Line Tracking Systems: Required for bores where the depth exceeds the effective range of walkover locating, or where the surface above the bore path is inaccessible due to traffic, water, or other obstacles. Wire line systems transmit tracking data through a wire running inside the drill rod string back to a surface monitoring unit. This approach provides accurate position data at depths that walkover systems cannot reach and is the standard method for deep highway crossings, river crossings, and similar applications. Wire line tracking is used on projects that require documented bore depth data as part of the permit deliverables.

Oklahoma’s subsurface geology changes significantly across the state. Each zone requires different drill tooling to advance the bore efficiently and maintain bore hole stability during reaming and pullback. Using the wrong tooling for the soil type results in slower bore progress, higher wear, and greater risk of bore hole collapse or stuck pipe. Matching tooling to formation is a fundamental part of how Trinity Boring Solutions prepares for each HDD project.

Every HDD drilling rigs Oklahoma project begins with a thorough site assessment. We locate existing utilities, plan the bore path, pull required permits and coordinate with 811 before any equipment touches the ground. That process protects your project, your budget and your schedule.

Sandy and Loamy Soils (Western Oklahoma): Western Oklahoma’s Permian age soils include sandy loam, red sandy clay, and loose sedimentary formations. For these soils, bullet nose and arrow head drill heads are effective for advancing the pilot bore. The relatively soft formations advance quickly but require careful drilling fluid management to keep the bore hole stable and prevent sand migration. Oversized reaming passes are used carefully to avoid bore hole enlargement and potential collapse in loose sandy sections.

Red Clay and Gumbo (Central Oklahoma): The red clay and gumbo formations common across central Oklahoma present unique challenges. These cohesive clays tend to stick to the bit face and accumulate in the bore hole, reducing bit efficiency and increasing torque demand. Chisel style drill heads with aggressive face geometry and pressure relief ports are preferred for advancing through these formations. Drilling fluid programs for red clay emphasize high viscosity sweeps to clean cuttings from the bit face and bore hole between reaming passes. The central Oklahoma formation around the OKC metro is where much of our fleet’s operating time is spent.

Shale and Rock (Eastern Oklahoma): Eastern Oklahoma introduces shale, limestone, and harder sedimentary rock formations that require specialized hard rock tooling. PDC (polycrystalline diamond compact) drill bits are used for moderately hard formations. Tricone roller cone bits are selected for harder rock where PDC tooling would wear too quickly. Rock tooling requires higher rotary torque from the HDD rig, which is why production class rigs are often necessary for rock boring applications regardless of bore diameter.

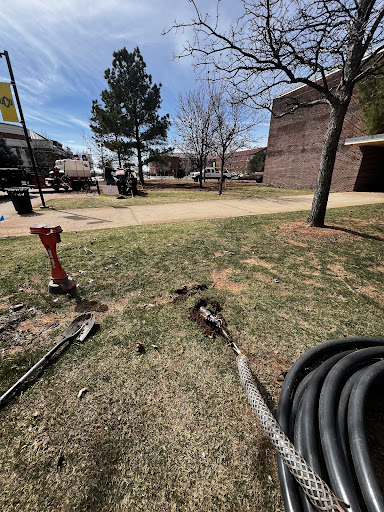

Beyond drill heads, the reamer is the tool that opens the pilot bore hole to the final diameter needed for product pipe installation. We carry backreamer sizes matched to the product pipe outside diameters most common in Oklahoma utility work. Swivel connections and barrel reamers are used to pull reaming passes back through the bore while maintaining bore hole roundness and wall integrity. The reamer diameter is selected to open the bore to 1.3 to 1.5 times the outside diameter of the product pipe, providing adequate clearance for pullback while minimizing over excavation and fluid loss.

Bore Path Planning Services

HDD Drilling Fluid Management on Oklahoma Projects

If you have questions about whether HDD drilling rigs Oklahoma is the right solution for your project, our team is happy to walk you through the options. We explain the process clearly so you can make an informed decision before committing to any scope of work.

Drilling fluid, commonly called drilling mud, is central to every horizontal directional drilling operation. Without properly designed and managed drilling fluid, bore hole stability cannot be maintained, cuttings cannot be transported out of the bore, and pullback friction will increase to the point where product pipe installation fails. Trinity Boring Solutions manages drilling fluid programs as a technical part of every project.

The base fluid for most Oklahoma HDD operations is a bentonite and water mixture. Bentonite clay is a naturally occurring mineral that forms a pumpable, lubricating, and stabilizing fluid when mixed with fresh water at the appropriate concentration. The bentonite fluid is mixed at our fluid mixing unit before boring begins and pumped through the drill rod to the bit face during the pilot bore and all reaming passes. The used fluid exits the bore at the entry and exit pits and is contained for recycling or disposal.

For specific Oklahoma soil conditions, drilling fluid additives are used to modify the base mix. In sandy western Oklahoma soils, polymer additives improve viscosity and help prevent fluid loss into porous formations. In central Oklahoma’s clay formations, soda ash is used to adjust pH and improve bentonite dispersion for better viscosity control. In rock conditions, specialty mud programs are used to manage temperature and maintain bit cooling. The right fluid program for the specific soil type is as important as the drill bit selection in achieving a successful bore.

For commercial projects with significant fluid volumes, we deploy a drilling fluid recycler that screens, reconstitutes, and reuses spent drilling fluid rather than disposing of it continuously. This reduces overall fluid usage, lowers the volume of used fluid requiring disposal, and maintains consistent fluid properties throughout the bore. On environmentally sensitive projects near waterways or wetlands, proper drilling fluid containment and recycling is not just operationally sound but may be required by environmental permit conditions.

Hydrovac Daylighting Services

Horizontal directional drilling operations in Oklahoma are subject to a range of industry standards and regulatory requirements that govern how equipment is operated, how utilities are located, and how bore paths are planned relative to existing infrastructure.

The North American Society for Trenchless Technology (NASTT) is the primary industry organization for HDD and other trenchless construction methods. NASTT publishes Good Practices Guidelines for HDD that cover bore path design criteria, drilling fluid management, reamer selection, and pullback force calculation. These guidelines inform the technical approach we apply on every project.

Underground utility damage prevention is governed by Oklahoma’s Underground Facilities Damage Prevention Act, which requires calling 811 before any excavation or boring. We call 811 before every project and allow the required utility marking period before drilling begins. For commercial projects with complex utility environments, we perform hydrovac daylighting to physically verify utility positions before the bore path enters the zone of potential conflict.

For projects crossing ODOT right of way, HDD equipment operation and bore path placement must comply with the Oklahoma Department of Transportation utility accommodation policy. ODOT specifies minimum cover depth, bore path offset from drainage structures, and equipment placement requirements within the right of way that must be followed for every highway crossing permit.

Pipeline installations are subject to oversight from the Oklahoma Corporation Commission when they involve regulated natural gas or petroleum distribution systems. Electrical installations are subject to NEC code requirements enforced by the local authority having jurisdiction. Water and sewer installations are subject to Oklahoma Department of Environmental Quality standards for water main and wastewater installation.

Worker safety on HDD projects is governed by OSHA 29 CFR 1926 Subpart S for underground construction. Entry pit excavations are treated as potential confined spaces and evaluated accordingly before any worker entry. Trench safety requirements apply to entry and exit pits based on depth and soil conditions. Our field supervisors are trained in OSHA underground construction requirements and ensure compliance on every project.
